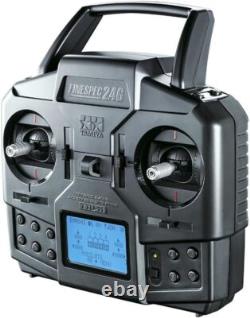

Tamiya RC System No. 68 Fine Spec 2.4G 4 Channel Radio Transmitter/Receiver Set



68 Fine Spec 2.4G 4 Channel R/C System Transmitter & Receiver Set 45068. The transmitter is a self-neutral stick type. In addition to the trim lever digital trim for each channel, it is equipped with 10 function buttons that can be used with a single push for various operations such as firing the main gun and machine gun of the tank, operating the horn of the truck, and turning on the lights. Presets are available for each MFC unit and DMD, making it easy to set up.

In addition, it is possible to change the settings of the function buttons, change the position of the output channel channel swap, change forward and reverse rotation channel reverse, and adjust the endpoint and sub-trim. It is equipped with a backlit LCD screen that displays various setting statuses. You can store your own data for up to 15 units. Of course, without worrying about the band frequency, 2.4GHz is used so that multiple units can enjoy simultaneous driving. The transmitter and receiver are paired on a one-to-one basis, making it difficult to interfere.

Equipped with 10 function buttons? A total of 10 function buttons are placed, 6 in the lower left corner of the front of the transmitter and 2 on each side of the top surface. These actions, which require multiple operations, such as firing the main gun and machine gun of the RC tank, turning the volume up and down, turning the lights on and off, and switching the lights and horn sound of the RC trailer, can be performed with a single push of a button. It makes it even more fun to control. In addition, various information can be checked on the LCD screen, and the main screen always displays the transmitter voltage and trim value, as well as during setting. You can also adjust the stick to your preferred length by loosening the 3mm screw at the tip and turning the stick turn left to stretch and right to shrink. [TTU-11 Transmitter] Operation Method: 2 Stick Type 4 Channels + 10 Function Buttons. Transmission range: 2.4 GHz band. Working current: up to 140mA at 6V. [TRU-11 receiver] Reception frequency: 2.4GHz band.

Power supply: 7.2V max. Limited to supply from a unit with a BEC circuit. Supply current: 40mA at 5V.

Note: Cannot be used in combination with a transmitter TTU-09 or receiver TRU-09 other than this product TTU-11, TRU-11. The receiver TRU-11 of this product does not have a built-in BEC receiver voltage conversion circuit.

When using an ESC speed controller, be sure to use the type with built-in BEC. The Tamiya TEU-101BK and TEU-104BK ESCs do not have a built-in BEC and cannot be used. This product should only be used in electric RC cars for ground driving. Functions that are not originally installed in the MFC or DMD unit will not work even if this product is used.

This product requires a power supply to drive, but does not include batteries, batteries, chargers, etc. This product does not use fuel. Fuel is not included in this product. This product does not include paints, adhesives, oils, greases, tools, etc.
