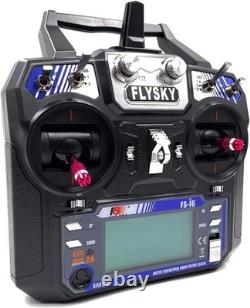

FS-i6 6CH 2.4GHz Radio System RC Transmitter Controller withFS-iA6 Receiver for



FS-i6 6CH Radio System RC Transmitter Controller w/FS-iA6 Receiver for RC Helicopter Plane Quadcopter Glide Mode_2. 1Reliable, interference free AFHDS 2A signal operation. Associated with a High Sensitivity Receiver, This Radio System SATISFACTION GUARANTEEs a Jamming Free Long Range Radio Transmission Each Transmitter Has a Unique Id, When Binding with a Receiver, The Receiver Saves That Unique ID and Can Accepts Only Data From The Unique Transmitter. 3 Each transmitter and receiver has it's own unique ID.

Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation. 4 The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life. 5 Quick and extremely stable in performance.

FS i6 and ia6 receivers have completed the code matching, no need to code again. Please note:the FS-I6 is Left hand throttle(Mode 2), the throttle stick will not return to the center up and down. The transmitter and receiver have been pre-bound before you are using another transmitter or receiver, follow the steps below to bind to the B/VCC port on the receiver. 1, Connect the supplied bind cable to the B/VCC port on the receiver.

2, Insert power into any other port. 3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode.

4, Remove the power and bind cable from the receiver. Then connect the power cable to the B/VCC port. 5, Check the servos' operation. If anything does not work as expected, restart this procedure from the beginning. FS-i6 Specifications: Channels: 6 Model Type: Glider/Heli/Airplane RF Range: productwidth: 500KHz product: 142 RF Power: Less Than 20dBm System: AFHDS 2A and AFHDS Code Type: GFSK Sensitivity: 1024 Low Voltage Warning: less than DSC Port: PS2;Output:PPM Charger Port: No ANT length: 26mm2(dual antenna) Transmitter Weight: 392g Transmitter Size: 174x89x190mm Package Size: Package Weight: 676g Power: 6V, 4AA Battery(Not included) Display mode: Transflective STN positive type, 12864 dot matrix VA7339mm, white backlight.

On-line update:yes Certificate: Model Memories: 20 Control Range: 500m FS-iA6 Specifications: Channels: 6 Frequency Range GHz Number of Band: 140 Transmitting Power: not more than 20dBm Receiver Sensitivity:-105dBm modes: Automatic frequency second generation digital systems Encoding: GFSK Weight: Input Power DC Dimensions: mm Color: Black i-BUS Interface: No Data Acquisition Interface: No Certification: Usage: Suitable for RC Airplane/glider/helicopter Compatible Transmitter: FS-i6, FS-I6X, FS-I6S Package Included: 1 x FS-i6 transmitter 1 x FS-iA6 Receiver 1 x Manual.
